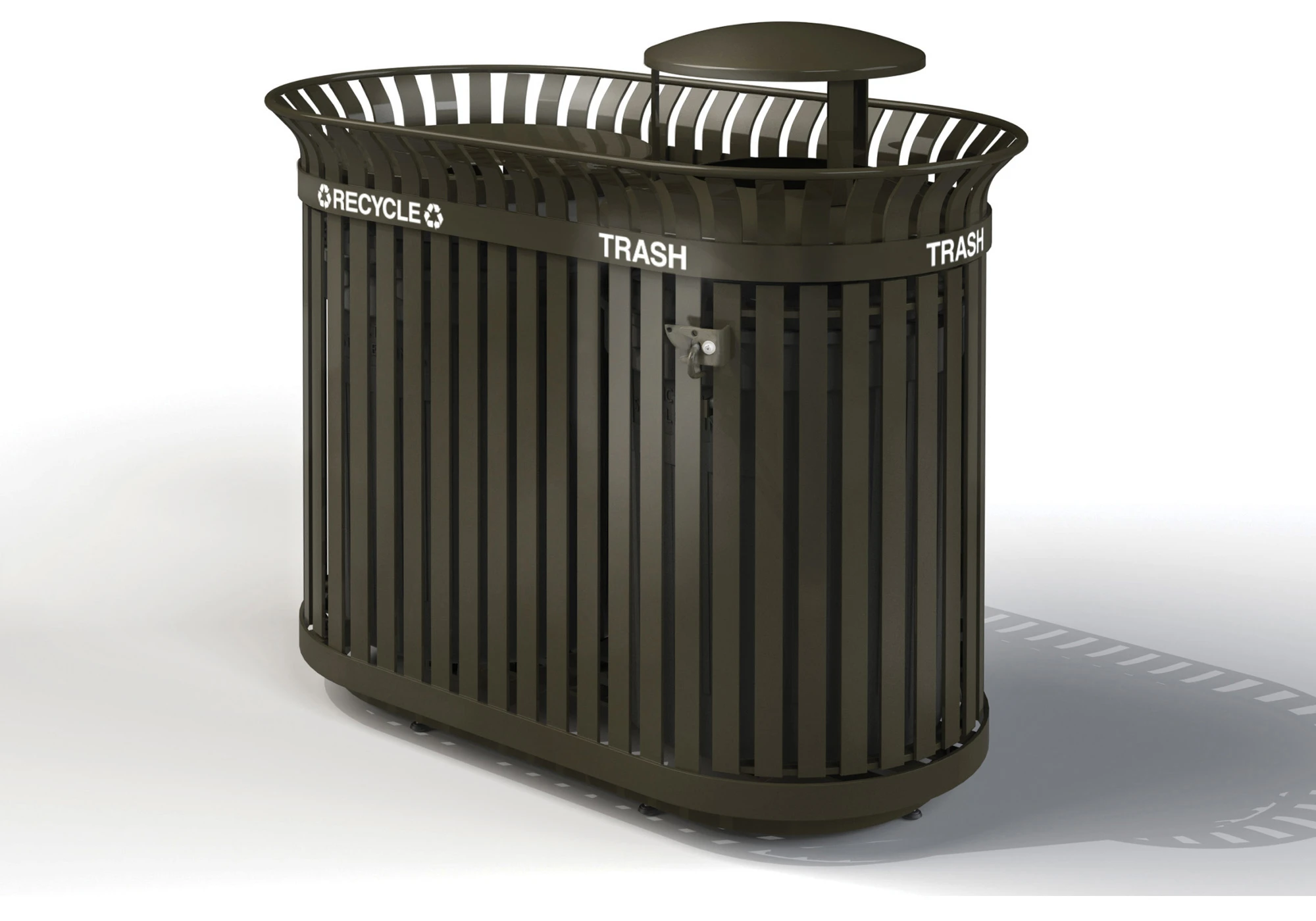

Lighter weight design resembling our industry-standard Ironsites® Collection. Smaller scale with 1/4 in (6.4 mm) thick vertical steel bars.

Two 36 gal (136 L) liners and two lids in any combination: standard tapered formed lid, recycle lid and/or slotted lid. Optional “standard decal package” including top band and lid decals. Bottom recessed pedestal. Latch.

The two (2) side doors’ hinges each incorporate stainless-steel pins and oil-impregnated bronze bushings, eliminating friction and maximizing the lifespan of the product.

Standard

All fabricated metal components are steel shotblasted, etched, phosphatized, preheated and electrostatically powder-coated with TGIC polyester powder coatings.

Other standard features include formed lid attached to the frame, high-density plastic liners, and rubber-tipped leveling feet on the base.

Interior plastic liners for our litter receptacles offer substantial value and are produced on molds that we designed and own. These plastic cans are reinforced, ribbed, and molded for durability, ease of use, and greater capacity.

Options

Available with dome, rain bonnet, spherical dome, or enclosed dome lids. Keyed locking mechanism. Dome lid (ashtrays available). Convex lid (self-close door available). Rain bonnet lid (ashtrays available). Spherical dome lid (self-close door available). Enclosed dome lid (ashtrays available). Recycle lids. Galvanized steel liner (powder coat available). Half-Moon liners. Custom decals and plaques.

Product Documents

Brochures

Victor Stanley Catalogsaveloading
link

CAD Drawings

2 Standard Tapered Formed Lids, Lockable Latchsaveloading
PDFDWGDWGPDF
2 Standard Tapered Formed Lids, Optional Keyed Lock Boxsaveloading
PDFDWGDWGPDF
